Sh2-115 and Sh2-116 + Mirko Tondinelli + L-Synergy, L-Ultimate

Sh2-115 and Sh2-116

Credit: Mirko Tondinelli

Filters: L-Synergy, L-Ultimate







First test of the new Optolong Filter Images L-Synergy filter.
This is a 7nm narrowband SII/OIII dual-band light pollution filter.
The subject is the nebula complex comprising Sh2-115 and Sh2-116, chosen because I already had over 11 hours of footage available with the L-Ultimate filter (different bandwidth as it is 3nm).
Once I had obtained the masters to create the SHO composition, I divided the ultimate master into the three RGB channels and chose the red channel (equivalent to Ha). As for the OIII channel, after analysing both green channels of the Ultimate and Synergi filters, I decided to average the two with Pixelmath, creating a single file. For sulphur, I took the red channel from the L-Synergi master.
As for “star halos”, I must say that Optolong worked really well again this time and, as you can see in the image, there are no obvious halos. I also tested individual stars (Sadr, 52 Cygni in the veil) and the result was very satisfactory.
Once I had created the classic SHO combination, I processed the image with Pixinsight and Photoshop software.  Thanks to my friend Riccardo Pacini astrophotography who helped me with the processing, especially with Astropixel Processor and Photoshop.
It should be noted that the light acquisition was carried out with the moon at 65% and under a Bortle 6 sky (Guidonia Montecelio).

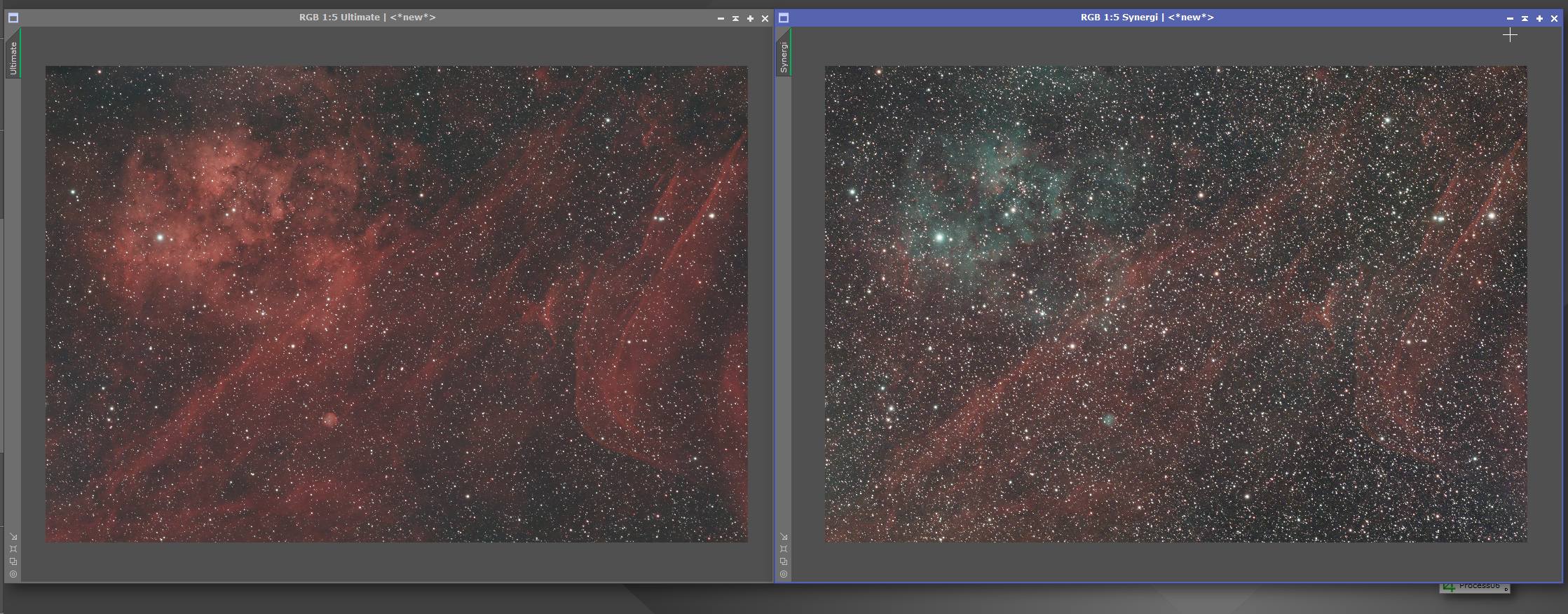

Master Ultimate a sx e Synergi a dx

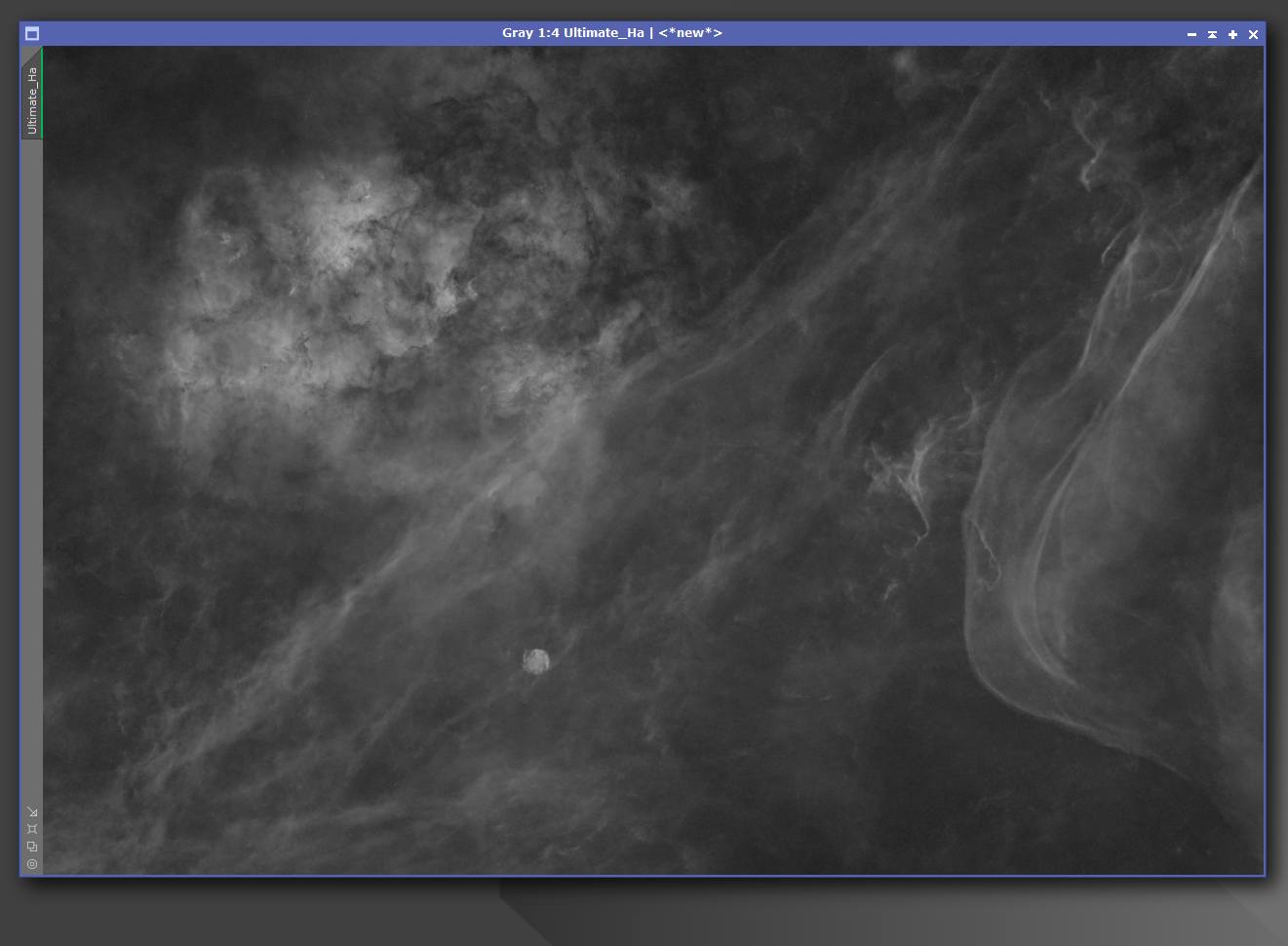

Halfa ( Ultimate)

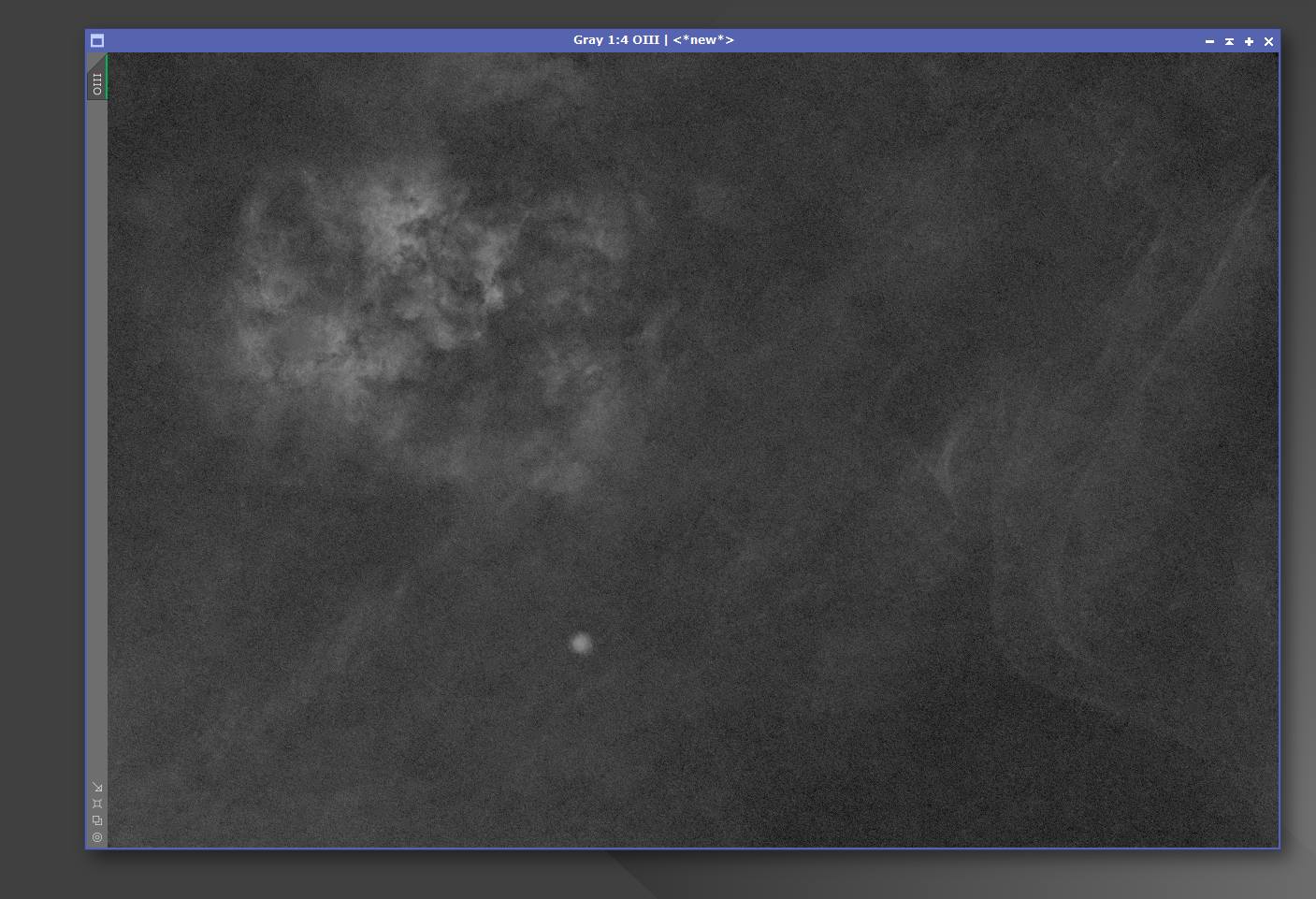

OIII Ultimate Synergi

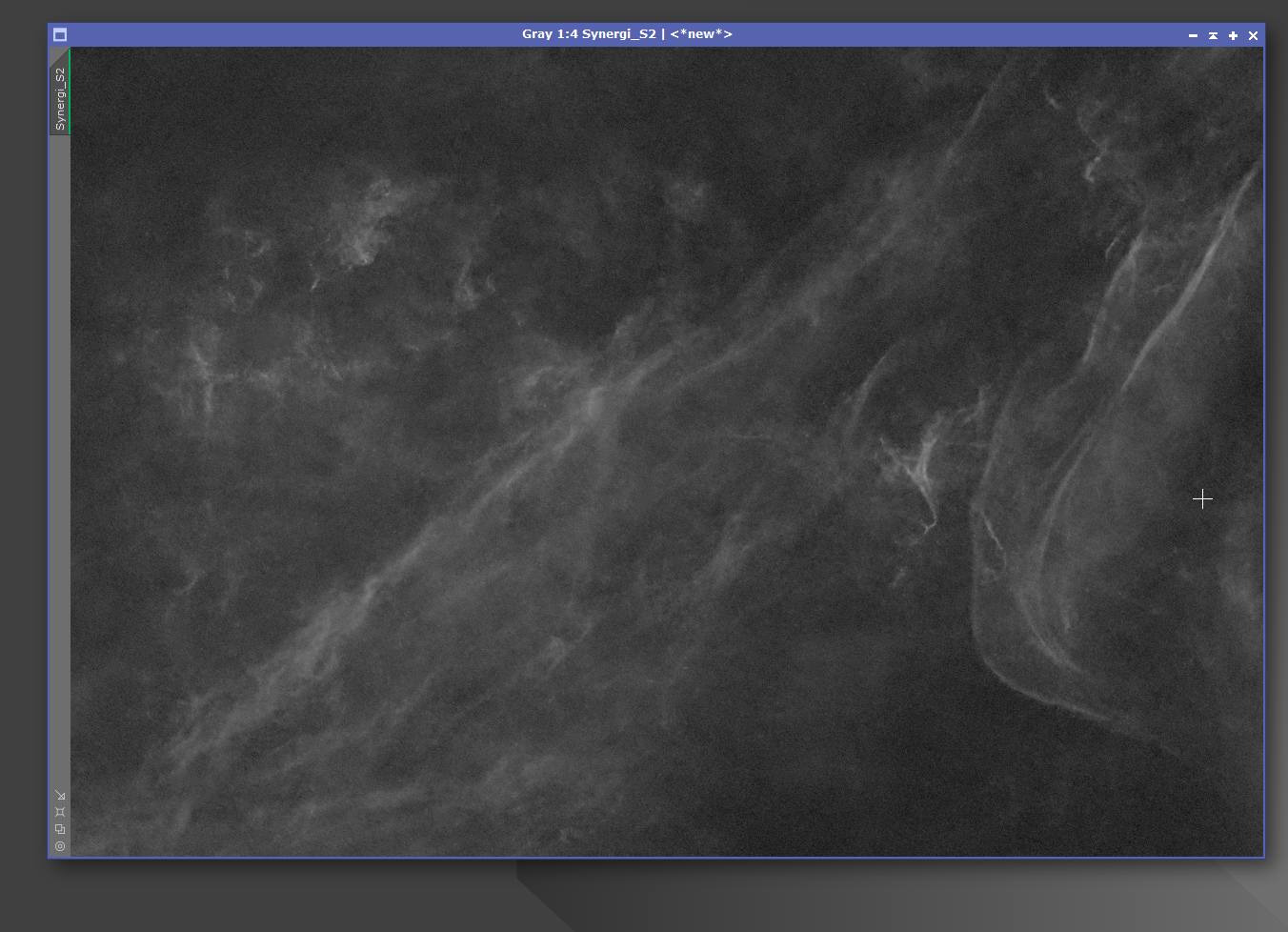

SII

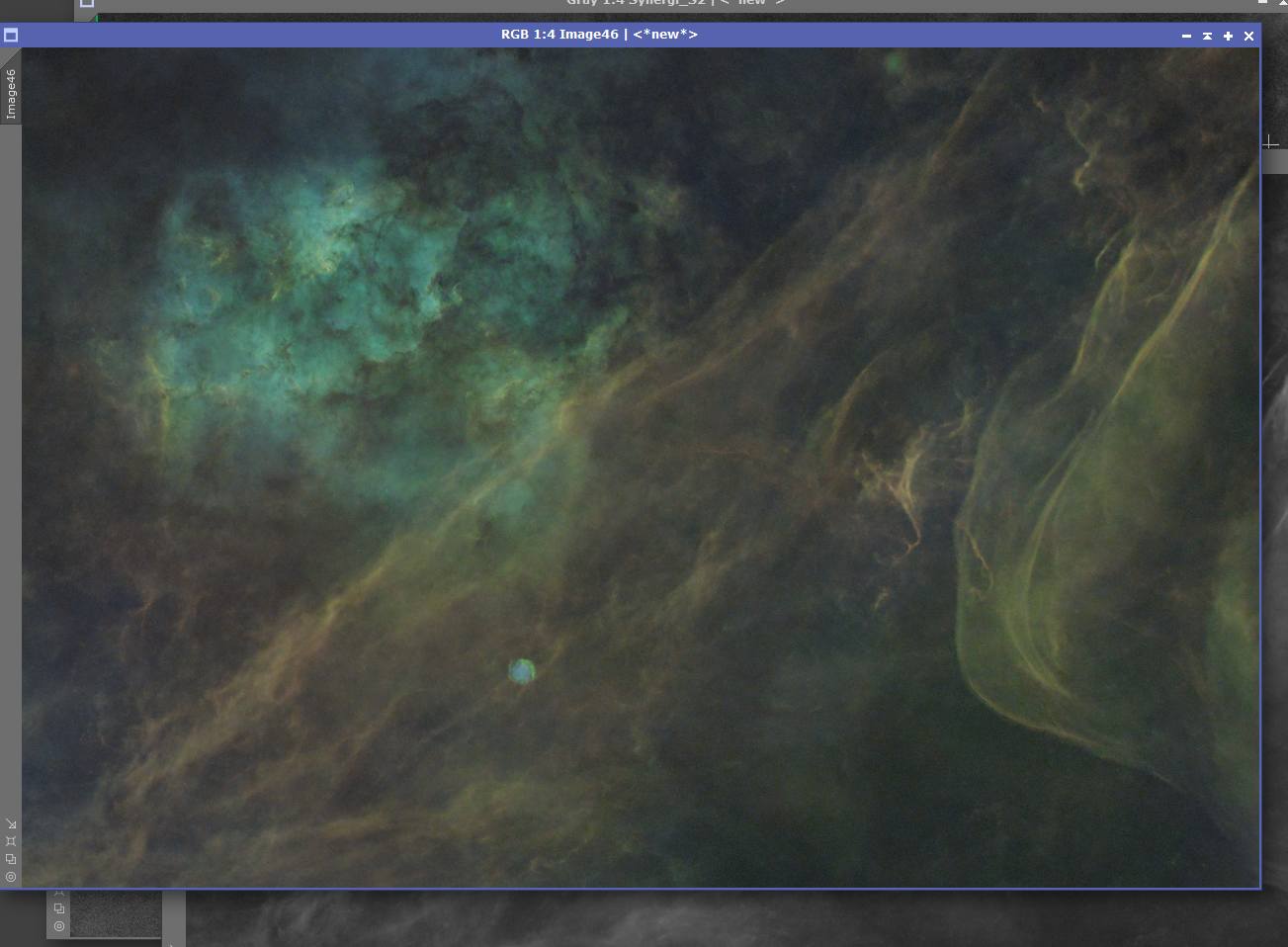

SHO









In addition to the SHO image, I am also attaching a comparison between the two masters of the two filters and screenshots showing the three separate channels.



INSTRUMENTATION:
TS 90 Owl telescope
Omegon 571vTec camera
Optolong Astronomy Filter L-Ultimate
Ultraguide 60/240 guide telescope
ASI 224 guide camera
Eq6 mod Rowan mount

L-ULTIMATE DATA
61 300" lights
72 300" lights
Total exposure 11 hours
Gain 100, Offset 250
Dark 40
Flat 40
DarkFlat 40
Guidonia Montecelio (Rome)
Bortle 6

L-SYNERGI DATA
48 300" lights
23 light at 600"

Total exposure 7.8 hours





Hope you like it.
